Friday, December 23, 2016

Encyclopedia of Drunken Walks

- A New Paradigm -

"God does not play dice" vs "God does not waste computational resources"

Drunken walks are ideal for map generation for 3 reasons:

  1. The generated map is inherently fractal.
  2. The generated map is definitively random.
  3. The map can be generated dynamically (on the fly).  This dynamic map generation allows for unlimited map size (boundless and infinite).

Drunken walks can be biased to favor any combination of the 6 cardinal/absolute directions (NW, NE, East, SE, SW, West) and the 6 relative directions (straight forward = 12:00, right forward = 2:00, right backward = 4:00, straight backward = 6:00, left backward = 8:00, left forward = 10:00).

These biases can be encoded in 6 weights for cardinal/absolute directions, and 6 weights for relative directions (relative to the current direction of movement).

A drunken walk pattern can thus be defined by 12 weights, and we call this collection of weights the "Direction Tensor".  The word "tensor" is used here to mean roughly "an object whose shadow is a vector".  At any given point in time, the likelihood of moving in each direction is proportional to the product of the cardinal/absolute weight, and the corresponding relative weight (each relative direction corresponds to an absolute direction, with respect to the current direction of movement).

The effects of chaging the 6 cardinal/absolute weights are fairly predictable, so this study examines only the effects of relative weightings (the 6 cardinal/absolute weights are taken to be equal to each other, so there are no cardinal biases).

- Example Patterns -

Limiting movement to backwards right and left (4:00 and 8:00) leads to a relatively compact but elongated form:

50% right backwards (4:00), 50% left backwards (8:00).

66% right backwards (4:00), 33% left backwards (8:00).
Limiting movement to straight and right forward (12:00 and 2:00) generates a less compact form:

66% straight forward (12:00), 33% right forward (2:00).
Limiting motion to right forward and left forward (2:00 and 10:00) - aka clockwise and counter-clockwise - results in characteristic "holes".  This can be used for maps where regularly spaced lakes, islands, or oases are desired:

50% right forward (2:00), 50% left forward (10:00).  [example 1/2]

50% right forward (2:00), 50% left forward (10:00).  [example 2/2]
Allowing movement in any direction except for straight backwards leads to the following "balanced" typologies:
20% straight forward (12:00), 20% right forward (2:00), 20% right backward (4:00), 20% left backward (8:00), 20% left forward (10:00).  [example 1/3]
20% straight forward (12:00), 20% right forward (2:00), 20% right backward (4:00), 20% left backward (8:00), 20% left forward (10:00).  [example 2/3]


20% straight forward (12:00), 20% right forward (2:00), 20% right backward (4:00), 20% left backward (8:00), 20% left forward (10:00).  [example 3/3]

- VBA Code (Class Module) -

'6 weights for the 6 absolute directions:
Public NW As Single
Public NE As Single
Public East As Single
Public SE As Single
Public SW As Single
Public West As Single

'6 weights for the 6 relative directions:
Public StraightForward As Single
Public RightForward As Single
Public RightBackward As Single
Public StraightBackward As Single
Public LeftBackward As Single
Public LeftForward As Single

'6 numbers for current fractional likelihood of each absolute direction:
Public ProbabilityNW As Single
Public ProbabilityNE As Single
Public ProbabilityEast As Single
Public ProbabilitySE As Single
Public ProbabilitySW As Single
Public ProbabilityWest As Single

Public Function GetDirection(ByVal Previous As Location, ByVal Current As Location)
    Dim Direction As String
    Dim SouthShift, EastShift As Integer

    SouthShift = Current.Row - Previous.Row
    EastShift = Current.Col - Previous.Col

    Direction = "resting"
    If SouthShift = 0 And EastShift = 1 Then Direction = "East"
    If SouthShift = 0 And EastShift = -1 Then Direction = "West"
    If SouthShift = 1 And EastShift = 0 Then Direction = "SE"
    If SouthShift = 1 And EastShift = -1 Then Direction = "SW"
    If SouthShift = -1 And EastShift = 1 Then Direction = "NE"
    If SouthShift = -1 And EastShift = 0 Then Direction = "NW"

    GetDirection = Direction
End Function

Public Sub CalculateProbabilities(ByVal Direction As String)
'The public variable "Direction" should be set before calling this sub.
    Dim AbsoluteWeights(6) As Single
    Dim RelativeWeights(6) As Single
    Dim CombinedWeights(6) As Single
    Dim Counter, RotatingCounter As Integer
    Dim TotalWeights As Single

    AbsoluteWeights(0) = Me.NW
    AbsoluteWeights(1) = Me.NE
    AbsoluteWeights(2) = Me.East
    AbsoluteWeights(3) = Me.SE
    AbsoluteWeights(4) = Me.SW
    AbsoluteWeights(5) = Me.West

    RelativeWeights(0) = Me.StraightForward
    RelativeWeights(1) = Me.RightForward
    RelativeWeights(2) = Me.RightBackward
    RelativeWeights(3) = Me.StraightBackward
    RelativeWeights(4) = Me.LeftBackward
    RelativeWeights(5) = Me.LeftForward

    TotalWeights = 0
    'Rotate RelativeWeights depending on Direction:
    Select Case Direction
    Case "NW"
        For Counter = 0 To 5
            CombinedWeights(Counter) = AbsoluteWeights(Counter) * RelativeWeights(Counter)
            TotalWeights = TotalWeights + CombinedWeights(Counter)
        Next Counter
    Case "NE"
        For Counter = 0 To 5
            RotatingCounter = (Counter - 1) Mod 6
            'We need the next line, because vba does "mod" wrong.
            If RotatingCounter < 0 Then RotatingCounter = RotatingCounter + 6
            CombinedWeights(Counter) = AbsoluteWeights(Counter) * RelativeWeights(RotatingCounter)
            TotalWeights = TotalWeights + CombinedWeights(Counter)
        Next Counter
    Case "East"
        For Counter = 0 To 5
            RotatingCounter = (Counter - 2) Mod 6
            If RotatingCounter < 0 Then RotatingCounter = RotatingCounter + 6
            CombinedWeights(Counter) = AbsoluteWeights(Counter) * RelativeWeights(RotatingCounter)
            TotalWeights = TotalWeights + CombinedWeights(Counter)
        Next Counter
    Case "SE"
        For Counter = 0 To 5
            RotatingCounter = (Counter - 3) Mod 6
            If RotatingCounter < 0 Then RotatingCounter = RotatingCounter + 6
            CombinedWeights(Counter) = AbsoluteWeights(Counter) * RelativeWeights(RotatingCounter)
            TotalWeights = TotalWeights + CombinedWeights(Counter)
        Next Counter
    Case "SW"
        For Counter = 0 To 5
            RotatingCounter = (Counter - 4) Mod 6
            If RotatingCounter < 0 Then RotatingCounter = RotatingCounter + 6
            CombinedWeights(Counter) = AbsoluteWeights(Counter) * RelativeWeights(RotatingCounter)
            TotalWeights = TotalWeights + CombinedWeights(Counter)
        Next Counter
    Case "West"
        For Counter = 0 To 5
            RotatingCounter = (Counter - 5) Mod 6
            If RotatingCounter < 0 Then RotatingCounter = RotatingCounter + 6
            CombinedWeights(Counter) = AbsoluteWeights(Counter) * RelativeWeights(RotatingCounter)
            TotalWeights = TotalWeights + CombinedWeights(Counter)
        Next Counter
    Case "resting"
        'If the animal rested on the last turn, absolute/cardinal movement bias controls:
        For Counter = 0 To 5
            CombinedWeights(Counter) = AbsoluteWeights(Counter)
            TotalWeights = TotalWeights + CombinedWeights(Counter)
        Next Counter
    End Select

    'Normalize the probabilities so they add up to 1:
    If TotalWeights <> 0 Then
        For Counter = 0 To 5
            CombinedWeights(Counter) = CombinedWeights(Counter) / TotalWeights
        Next Counter
    End If

    Me.ProbabilityNW = CombinedWeights(0)
    Me.ProbabilityNE = CombinedWeights(1)
    Me.ProbabilityEast = CombinedWeights(2)
    Me.ProbabilitySE = CombinedWeights(3)
    Me.ProbabilitySW = CombinedWeights(4)
    Me.ProbabilityWest = CombinedWeights(5)
End Sub

Public Sub NormalizeProbabilities(ByVal TotalWeights As Single)
    'Use zero to indicate "recalculate TotalWeights":
    If TotalWeights = 0 Then
        TotalWeights = Me.ProbabilityNW + Me.ProbabilityNE + Me.ProbabilityEast _
        + Me.ProbabilitySE + Me.ProbabilitySW + Me.ProbabilityWest
    End If

    'If it actually is zero (based on math), then use "absolute values":
    If TotalWeights = 0 Then
        Me.CalculateProbabilities ("resting")
    Else
        Me.ProbabilityNW = Me.ProbabilityNW / TotalWeights
        Me.ProbabilityNE = Me.ProbabilityNE / TotalWeights
        Me.ProbabilityEast = Me.ProbabilityEast / TotalWeights
        Me.ProbabilitySE = Me.ProbabilitySE / TotalWeights
        Me.ProbabilitySW = Me.ProbabilitySW / TotalWeights
        Me.ProbabilityWest = Me.ProbabilityWest / TotalWeights
    End If
End Sub

Copyright 2016 Matthew J Curran.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this code except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.




Monday, November 28, 2016

Exodus To Kobe 2.0


This version allows domestication of animal herds.

Click "Update Radar" any time you move over or next to a new herd.
Click "Show All my Herds" to view all the animals you have domesticated.


Click "Show my Fastest Herds" to view your movement cost over different terrain.
You can play as either Germany, Russia, or Korea (single or multi-player).
Your goal is still to find Kobe.
For single player mode, simply delete the contents of rows 7 & 8 (col 1) in "Maps" tab.

You must enable macros for this game to run in Excel.  Never run Excel macros from questionable or unverified websites.



Copyright 2016 Matthew J Curran.  Full license details in Module 1 of the VBA code.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.

Sunday, November 20, 2016

Co-Ex World Explorer - Third Release: Exodus To Kobe

In this mini-game, you can play as either Germany or Korea (single or multi-player).  Your goal is to find Kobe.

Most of the key game features (e.g. domestication and evolution of animals) still remain to be implemented.  This fully functional mini-game serves primarily to illustrate the power of Dynamic Map Generation (行動的ダイナミック地図開発).

Here are five unique starting maps, all dynamically generated from the same seed map (with the location of Japan semi-randomized):

Germany in NW, Korea in NE, Japan to the south.

In this map, the Korean peninsula may turn out to be an island.

In this map, a Denmark-like formation separates the North Sea and the Baltic.

In this map, Germany and Japan have grown together to form a single continent.

The Osaka plain is clearly visible to the east of Kobe (forested tile).

For single player mode, simply delete the contents of row 7, col 1 in "Maps" tab.

To add a third player, type "Germany", "Korea", or "random" in row 8, col 1 of "Maps" tab, and also make sure to create three additional tabs, which you must "move to end".  Type a color index in row 8, col 2.  Of course, due to the semi-randomized location of Japan, the third player will be at a disadvantage.



You must enable macros for this game to run in Excel.  Never run Excel macros from questionable or unverified websites.


Copyright 2016.  Full license details in Module 1 of the VBA code.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.

Monday, November 7, 2016

Preview of New Features: Graphics

The next release will feature (optional) fancy graphics:

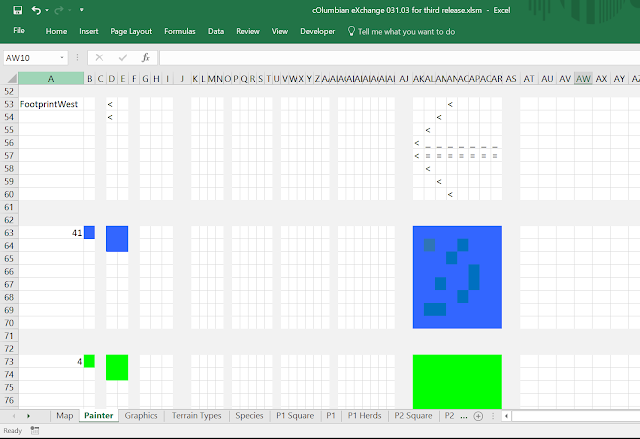

These can be very easily customized simply by editing the "Painter" tab:



Saturday, October 29, 2016

Columbian Exchange World Explorer: Second Release

This second release features some major new features:

  1. Advanced Map Generation.  The Map is now created dynamically by a swarm of autonomous map generators (henceforth "animals").
  2. Animals.  For now you can enjoy watching them migrate.  In future versions, you can domesticate and evolve them - or hunt them to extinction.
  3. Terrain.  The game now features a variety of terrains: forest will slow you down; snow capped mountains will bring you to a crawl.
A GIF showing a dozen turns of migration
Watching the animals migrate.
game in progress.  looks somewhat like a map of Mexico with south at the top.
A game in progress.
about 30 turns of example game play.
Example game (single player).

Use the buttons on the "Map" tab to start a new game, resume a game in progress, or simply watch the animals migrate.

You must enable macros for this game to run in Excel.  Never run Excel macros from questionable or unverified websites.


Copyright 2016.  Full license details in Module 1 of the VBA code.

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.


Monday, October 24, 2016

Preview of New Features: Animals

The next release will feature migrating animals!  Here is a sneak peek:


The animals are represented by dashed diagonal lines.  Here we can see a single herd of sheep, five herds of dolphins, and five herds of forest elephants.

Wednesday, October 19, 2016

Preview of New Features: Terrain

The next release will feature new terrain types:

  • Forest (dark green)
  • Desert (orange)
  • Mountains (ice blue)


Tuesday, October 18, 2016

Co-Ex World Explorer: First Release - The Map Generator

This first release of the game is just the foundation for the exciting modifications to come.  It is basically a map generator, which can be played as a freestanding exploration game.

This code uses on-the-fly map generation (dynamic map generation) to allow unlimited exploration.


The sheets/tabs of your excel file must be named as in the above screenshot.  You must also add buttons to call the macros "ResumeGame" and "ShowStartButton".  And you must create user forms as shown at the bottom of the code section.

Finally, you should include text on rows 6 and 7 of the sheet/tab labeled "Map" as in the following screenshot:


To play single player mode, go into the sheet/tab labeled "Map" and delete "human" from row 7.  To add a third player, create two additional sheets/tabs ("Player3" and "Player3 Hex View"), and add "human" and a color index to row 8.


Here is the Visual Basic code, divided into four modules:

'Module 1
'Model/View
'Initializer functions.

'Copyright 2016 Matthew J Curran
'
'Licensed under the Apache License, Version 2.0 (the "License");
'you may not use this file except in compliance with the License.
'You may obtain a copy of the License at
'
'    http://www.apache.org/licenses/LICENSE-2.0
'
'Unless required by applicable law or agreed to in writing, software
'distributed under the License is distributed on an "AS IS" BASIS,
'WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
'See the License for the specific language governing permissions and
'limitations under the License.


Option Explicit

Public ANewTileHasBeenExplored As Boolean

'Worksheet Indexes:
Public ActiveSquareIndex As Integer
Public ActiveHexIndex As Integer

'Color indexes (indices):
Public Const Black As Integer = 1
Public Const White As Integer = 2
Public Const Grey As Integer = 48
Public Const Grass As Integer = 4
Public Const Water As Integer = 41
Public Const LibertyColor As Integer = 56  'unexplored and might be land

Public Const NumReservedSheets = 1  ' "Map"
Public Const NumSheetsPerPlayer = 2 ' a square view and a hexagonal view.

Public Const FirstMapRow = 5
Public Const FirstMapCol = 4
'<-- if these are changed, FormatSheet() must also be changed!

Public Const FirstDebugRow = 22
Public Const DebuggingIsOn As Boolean = False
Public DebugRow As Integer

'The term 'liberty' (liberties) is borrowed from weiqi.
'In this game, it represents the number of unexplored tiles adjacent to the continent the active unit is on:
Public Const NumLibertiesRow = 19
Public NumLiberties As Integer

'Variables stored on each player's sheet:
Public Const LandPointsRow = 1
Public Const WaterPointsRow = 2
Public Const MovementsRemainingRow = 3
Public Const MovesPerTurnRow = 4
Public Const ActiveUnitRowStoredAtRow = 12
Public Const ActiveUnitColStoredAtRow = 13
Public Const LastMapRowStoredAtRow = 18
Public Const LastMapColStoredAtRow = 19

'variables stored on worksheet "Map":
Public Const FirstPlayerRow = 6
'Public Const WhoseTurnRow = 21
Public Const TurnRowStoredAtRow = 22

Dim ws As Worksheet
Const InitialMovesPerTurn As Integer = 2

Sub FormatSheet()
    ActiveSheet.Cells.ClearFormats

    'Fix (make sticky) the top four rows and leftmost three colums:
    Range("D5").Select
    ActiveWindow.FreezePanes = True

    'Make the background grey:
    Range("A1:zz999").Interior.ColorIndex = Grey

    'Make the infor area in frozen pane white:
    Range("a1:b4").Interior.ColorIndex = White

    'Make the whole map black:
    Range("D5:ZZ999").Interior.ColorIndex = Black

    'Adjust column width:
    Columns("D:ZZ").ColumnWidth = 1.6
End Sub

Sub InitializeMasterMap()
    Application.StatusBar = "Initialize Master Map ()"
    Worksheets("Map").Select

    Call FormatSheet
    'Clear the map (not the data):
    Range("D5:ZZ999").Value = ""

    Cells(TurnRowStoredAtRow, 1).Value = "Turn Row:"
    Cells(TurnRowStoredAtRow, 2).Value = FirstPlayerRow
    Cells(LastMapRowStoredAtRow, 1).Value = "farthest south:"
    Cells(LastMapColStoredAtRow, 1).Value = "farthest east:"
End Sub

'For each player:
Sub FormatSquareSheet(WorksheetIndex As Integer)
    Application.StatusBar = "Format Sheet (WorksheetIndex)"
    Worksheets(WorksheetIndex).Select

    Call FormatSheet
    'Clear all the data:
    Range("A1:ZZ999").Value = ""

    'Initialize game data:
    Cells(LandPointsRow, 1).Value = "Land Points:"
    Cells(WaterPointsRow, 1).Value = "Water Points:"

    Cells(MovesPerTurnRow, 1).Value = "Moves Per Turn:"
    Cells(MovesPerTurnRow, 2).Value = InitialMovesPerTurn
    Cells(MovementsRemainingRow, 1).Value = "Moves left:"
    Cells(MovementsRemainingRow, 2).Value = InitialMovesPerTurn

    Cells(NumLibertiesRow, 1).Value = "#Liberties:"   'possible new land tiles adjacent to continent
    Cells(NumLibertiesRow, 2).Value = 0
    Cells(LastMapRowStoredAtRow, 1).Value = "farthest south:"
    Cells(LastMapColStoredAtRow, 1).Value = "farthest east:"
    Cells(ActiveUnitRowStoredAtRow, 1).Value = "active unit row:"
    Cells(ActiveUnitColStoredAtRow, 1).Value = "active unit col:"
End Sub

Sub FormatHexSheet(WorksheetIndex As Integer)
    Application.StatusBar = "Format Hex Sheet (WorksheetIndex)"
    Worksheets(WorksheetIndex).Select
    ActiveSheet.Cells.ClearFormats

    Call FormatSheet
    'Clear all the data:
    Range("A1:C999").Value = ""

    'Initialize game data:
    Cells(LandPointsRow, 1).Value = "Land Points:"
    Cells(WaterPointsRow, 1).Value = "Water Points:"
    Cells(WaterPointsRow, 2).Value = 0

    Cells(MovementsRemainingRow, 1).Value = "Moves left:"
    Cells(MovementsRemainingRow, 2).Value = InitialMovesPerTurn
    Cells(MovesPerTurnRow, 1).Value = "Moves Per Turn:"
    Cells(MovesPerTurnRow, 2).Value = InitialMovesPerTurn

    Cells(NumLibertiesRow, 1).Value = "#Liberties:"
End Sub

Sub GenerateInitialMap(WorksheetIndex As Integer, Row As Integer, Col As Integer)
    Application.StatusBar = "Generate Initial Map (WorksheetIndex, Row, Col)"
    ActiveSquareIndex = WorksheetIndex
    ActiveHexIndex = ActiveSquareIndex + 1

    'Make the starting tile green:
    Worksheets(WorksheetIndex).Select
    Cells(Row, Col).Interior.ColorIndex = Grass

    'Copy it to the Master Map:
    Worksheets("Map").Select
    Cells(Row, Col).Interior.ColorIndex = Grass
    Worksheets(WorksheetIndex).Select

    Call GenerateNewTiles(Row, Col)

    'Get the color index for this player:
    Dim UnitColor, WhoseTurn As Integer
    WhoseTurn = ((WorksheetIndex - NumReservedSheets) + 1) / 2
    UnitColor = Sheets("Map").Cells(FirstPlayerRow + WhoseTurn - 1, 2)
    Worksheets(ActiveSquareIndex).Select

    'Mark the starting location of the active unit:
    With Cells(Row, Col).Borders(xlDiagonalUp)
        .LineStyle = xlContinuous
        .ColorIndex = UnitColor
        .Weight = xlThick
    End With

    'Mark it on the Master Map as well:
    Worksheets("Map").Select
    With Cells(Row, Col).Borders(xlDiagonalUp)
        .LineStyle = xlContinuous
        .ColorIndex = UnitColor
        .Weight = xlThick
    End With
    Worksheets(ActiveSquareIndex).Select

    Cells(ActiveUnitRowStoredAtRow, 2).Value = Row
    Cells(ActiveUnitColStoredAtRow, 2).Value = Col

    'Record the south-most and east-most explored tiles:
    Cells(LastMapRowStoredAtRow, 2).Value = Row + 1
    Cells(LastMapColStoredAtRow, 2).Value = Col + 1

    Call CountLiberties(Row, Col)
End Sub

Sub GenerateMapsForAllPlayers()
    Application.StatusBar = "Generate Maps For All Players ()"
    DebugRow = FirstDebugRow
    Application.ScreenUpdating = False
    Dim CurrentPlayerRow As Integer
    CurrentPlayerRow = FirstPlayerRow

    Dim WorksheetIndex As Integer
    WorksheetIndex = NumReservedSheets + 1

    Call InitializeMasterMap

    Do
        Call FormatSquareSheet(WorksheetIndex)        'format the square sheet.
        Call FormatHexSheet(WorksheetIndex + 1)    'format the hex sheet.
        Call GenerateInitialMap(WorksheetIndex, FirstMapRow + 5, FirstMapCol + WorksheetIndex * NumSheetsPerPlayer)
        Call ConvertToHexView(WorksheetIndex, WorksheetIndex + 1)
        CurrentPlayerRow = CurrentPlayerRow + 1
        WorksheetIndex = WorksheetIndex + NumSheetsPerPlayer     'skip over the hex sheets.
    Loop While Sheets("Map").Cells(CurrentPlayerRow, 1).Value <> ""

    Application.ScreenUpdating = True
    Application.StatusBar = False   'returns control of the statusbar to Excel.
End Sub

'-------------------------------------------------------------------------------------------------------------------------

'Module 2
'Model/View
'Recurring functions.

'Copyright 2016 Matthew J Curran
'
'Licensed under the Apache License, Version 2.0 (the "License");
'you may not use this file except in compliance with the License.
'You may obtain a copy of the License at
'
'    http://www.apache.org/licenses/LICENSE-2.0
'
'Unless required by applicable law or agreed to in writing, software
'distributed under the License is distributed on an "AS IS" BASIS,
'WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
'See the License for the specific language governing permissions and
'limitations under the License.


Option Explicit

Sub OneByOneToTwoByTwo(OriginSheet As Integer, TargetSheet As Integer, ByVal Row As Integer, ByVal Col As Integer, ByVal ULRow As Integer, ByVal ULCol As Integer)
    '(Row,Col) is the 1x1 range in the origin sheet. (ULRow,ULCol) is the Upper Left cell in the 2x2 range in the target sheet.
    Application.StatusBar = "One By One To Two By Two (OriginSheet, TargetSheet, Row, Col, ULRow, ULCol)"
    Dim Color As Integer
    Dim OriginRng, TargetRng As Range
    Dim Cell As Object

    Color = Worksheets(OriginSheet).Cells(Row, Col).Interior.ColorIndex

    With Worksheets(OriginSheet)
        Set OriginRng = .Range(.Cells(Row, Col).Address)
    End With
    With Worksheets(TargetSheet)
        Set TargetRng = .Range(.Cells(ULRow, ULCol), .Cells(ULRow + 1, ULCol + 1))
    End With

    'Copy the color of the origin cell to all 4 target cells:
    For Each Cell In TargetRng.Cells
        Cell.Interior.ColorIndex = Color
    Next Cell

    'Create a border (if the tile is explored):
    If Color <> Black And Color <> Grey Then
        TargetRng.BorderAround LineStyle:=xlDot, ColorIndex:=1
    End If

    'Copy unit markers into all four cells, for better visibility:
    Dim HasUnit, HasPlantsOrAnimals As Boolean
    HasUnit = False
    HasPlantsOrAnimals = False
    Dim UnitColor, PlantsOrAnimalsColor As Integer

    'DiagonalUp (/) for units:
    If Cells(Row, Col).Borders(xlDiagonalUp).LineStyle = xlContinuous Then
        HasUnit = True
        UnitColor = Cells(Row, Col).Borders(xlDiagonalUp).ColorIndex
    End If

    'DiagonalDown (\) for plants and animals:
    If Cells(Row, Col).Borders(xlDiagonalDown).LineStyle = xlContinuous Then
        HasPlantsOrAnimals = True
        PlantsOrAnimalsColor = Cells(Row, Col).Borders(xlDiagonalDown).ColorIndex
    End If

    If HasUnit Then
        With TargetRng.Borders(xlDiagonalUp)
            .LineStyle = xlContinuous
            .ColorIndex = UnitColor
            .Weight = xlThick
        End With
    Else
        TargetRng.Borders(xlDiagonalUp).LineStyle = xlNone
    End If

    If HasPlantsOrAnimals Then
        With TargetRng.Borders(xlDiagonalDown)
            .LineStyle = xlContinuous
            .ColorIndex = PlantsOrAnimalsColor
            .Weight = xlThick
        End With
    Else
        TargetRng.Borders(xlDiagonalDown).LineStyle = xlNone
    End If

    'Copy all the contents/formats of the origin cell into the Upper Left corner cell alone:
    With Worksheets(TargetSheet)
        Set TargetRng = .Range(.Cells(ULRow, ULCol).Address)
    End With
    OriginRng.Copy TargetRng
    Application.StatusBar = False
End Sub

Sub UpdateHexView(CenterRow, CenterCol)
    'Update only the closest 9 tiles.
    Application.StatusBar = "Update Hex View (CenterRow, CenterCol)"
    Dim Row, Col, Offset, ULRow, ULCol As Integer

    For Row = CenterRow - 1 To CenterRow + 1
        ULRow = (2 * Row) - 1
        Offset = Row - FirstMapRow
        For Col = CenterCol - 1 To CenterCol + 1
            ULCol = Offset + (2 * Col) - 1
            Call OneByOneToTwoByTwo(ActiveSquareIndex, ActiveHexIndex, Row, Col, ULRow, ULCol)
        Next Col
    Next Row
End Sub

Sub ConvertToHexView(OriginSheet As Integer, TargetSheet As Integer)
    Application.StatusBar = "Convert To Hex View (OriginSheet, TargetSheet)"
    ActiveSquareIndex = OriginSheet
    Dim LastMapRow, LastMapCol As Integer
    Dim Row, Col, Offset, ULRow, ULCol As Integer
    '(ULRow,ULCol) is the Upper Left cell of a 2x2 range on target sheet.

    'Read in values from player's sheet:
    Worksheets(OriginSheet).Select
    LastMapRow = Cells(LastMapRowStoredAtRow, 2)
    LastMapCol = Cells(LastMapColStoredAtRow, 2)

    For Row = FirstMapRow - 1 To LastMapRow + 1 '(a border of unexplored tiles)
        ULRow = (2 * Row) - 1
        Offset = Row - FirstMapRow
        For Col = FirstMapCol - 1 To LastMapCol + 1
            ULCol = Offset + (2 * Col) - 1
            Call OneByOneToTwoByTwo(OriginSheet, TargetSheet, Row, Col, ULRow, ULCol)
        Next Col
    Next Row

    Call MakeTheUpperLeftTwoByTwoBlack
End Sub

Sub MakeTheUpperLeftTwoByTwoBlack()
    Dim Row, Col, ULRow, ULCol, TileSize As Integer
    TileSize = 2
    ULRow = FirstMapRow + TileSize
    ULCol = FirstMapCol
    For Row = ULRow To ULRow - 1 + TileSize
        For Col = ULCol To ULCol - 1 + TileSize
            Worksheets(ActiveHexIndex).Cells(Row, Col).Interior.ColorIndex = Black
        Next Col
    Next Row
End Sub

Sub EndTurn()
    Application.StatusBar = "End Turn ()"
    Application.ScreenUpdating = False
    Dim MovesPerTurn As Integer

    ActiveSquareIndex = ActiveHexIndex - 1
    Worksheets(ActiveSquareIndex).Select   'switch from hex to square sheet.

    'Update range of motion based on land points:
    MovesPerTurn = Int(Cells(LandPointsRow, 2) / 7) + 1
    Cells(MovesPerTurnRow, 2).Value = MovesPerTurn

    'restore full movement to all units:
    Cells(MovementsRemainingRow, 2).Value = MovesPerTurn

    'Perform the previous two updates for hex view:
    Worksheets(ActiveHexIndex).Select
    Cells(MovesPerTurnRow, 2).Value = MovesPerTurn
    Cells(MovementsRemainingRow, 2).Value = MovesPerTurn

    Worksheets("Map").Select

    Dim OldTurnRow, NewTurnRow, nthPlayer As Integer
    OldTurnRow = Cells(TurnRowStoredAtRow, 2).Value
    NewTurnRow = OldTurnRow + 1 'the next player is one row below the previous player.

    'but if its blank, it means every player has played, and we start over at player 1 (on Sheet2):
    If Cells(NewTurnRow, 1) = "" Then
        NewTurnRow = FirstPlayerRow
    End If

    nthPlayer = 1 + NewTurnRow - FirstPlayerRow

    Cells(TurnRowStoredAtRow, 2) = NewTurnRow

    ActiveSquareIndex = NumReservedSheets + 1 + (nthPlayer - 1) * NumSheetsPerPlayer
    ActiveHexIndex = ActiveSquareIndex + 1

    'Update 9 tiles of square sheet from MasterMap:
    Worksheets(ActiveSquareIndex).Select
    Dim ActiveUnitRow, ActiveUnitCol As Integer
    ActiveUnitRow = Cells(ActiveUnitRowStoredAtRow, 2)
    ActiveUnitCol = Cells(ActiveUnitColStoredAtRow, 2)
    Call UpdateFromMasterMap(ActiveUnitRow, ActiveUnitCol)

    'Update the corresponding hex view:
    Call UpdateHexView(ActiveUnitRow, ActiveUnitCol)

    'Update liberties (could be affected by other players's explorations:
    Worksheets(ActiveSquareIndex).Select
    ActiveUnitRow = Cells(ActiveUnitRowStoredAtRow, 2).Value
    ActiveUnitCol = Cells(ActiveUnitColStoredAtRow, 2).Value
    Call CountLiberties(ActiveUnitRow, ActiveUnitCol)

    'Show the hex view:
    Worksheets(ActiveHexIndex).Select
    Application.StatusBar = False
    Application.ScreenUpdating = True
End Sub

Sub UpdateFromMasterMap(Row, Col)
    'Updates a 9 cell zone around the given row,col.
    Application.StatusBar = "Update From Master Map (Row, Col)"
    Dim CenterOfUpdateRegionX, CenterOfUpdateRegionY As Integer
    CenterOfUpdateRegionX = Row
    CenterOfUpdateRegionY = Col
    Dim X, Y As Integer  'where Cells(x,y) is the Upper Left of the update region.
    Dim XLR, YLR As Integer  'where Cells(xlr,ylr) is the Lower Right of the update region.
    X = CenterOfUpdateRegionX - 1
    Y = CenterOfUpdateRegionY - 1
    XLR = CenterOfUpdateRegionX + 1
    YLR = CenterOfUpdateRegionY + 1

    'Make sure the left and top boundaries of map are not exceeded:
    If X < FirstMapRow Then X = FirstMapRow
    If Y < FirstMapCol Then Y = FirstMapCol

    Dim Rng1 As Range
    Dim Rng2 As Range

    With Sheets("Map")
        Set Rng1 = .Range(.Cells(X, Y), .Cells(XLR, YLR))
    End With

    With Worksheets(ActiveSquareIndex)
        Set Rng2 = .Range(.Cells(X, Y), .Cells(XLR, YLR))
    End With

    Rng1.Copy Rng2
End Sub

Sub IncrementNumLiberties()
    Application.StatusBar = "Increment Num Liberties ()"
    NumLiberties = Worksheets(ActiveSquareIndex).Cells(NumLibertiesRow, 2).Value + 1
    Worksheets(ActiveSquareIndex).Cells(NumLibertiesRow, 2).Value = NumLiberties
    Worksheets(ActiveHexIndex).Cells(NumLibertiesRow, 2).Value = NumLiberties
End Sub

Sub DecrementNumLiberties()
    Application.StatusBar = "Decrement Num Liberties ()"
    NumLiberties = Worksheets(ActiveSquareIndex).Cells(NumLibertiesRow, 2).Value - 1
    Worksheets(ActiveSquareIndex).Cells(NumLibertiesRow, 2).Value = NumLiberties
    Worksheets(ActiveHexIndex).Cells(NumLibertiesRow, 2).Value = NumLiberties
End Sub

Sub DecrementMovementsRemaining()
    Application.StatusBar = "Decrement Movements Remaining ()"
    Dim MovementsRemaining As Integer
    MovementsRemaining = Worksheets(ActiveSquareIndex).Cells(MovementsRemainingRow, 2).Value - 1
    'Update both square and hex sheets:
    Worksheets(ActiveSquareIndex).Cells(MovementsRemainingRow, 2).Value = MovementsRemaining
    Worksheets(ActiveHexIndex).Cells(MovementsRemainingRow, 2).Value = MovementsRemaining
End Sub

Sub GenerateNewTiles(Row, Col)
    'Call this whenever a unit is moved.
    '(Row,Col) is the new (current) location of the unit.
    'It will check for unexplored (black) tiles adjacent to the unit, and generate new map tile at each one.
    Application.StatusBar = "Generate New Tiles (Row, Col)"

    'Call GenerateOneNewTile() 9 times:
    Dim X, Y As Integer
    For X = -1 To 1
        For Y = -1 To 1
            'Only generate a new tile if we arent standing on it:
            If X <> 0 Or Y <> 0 Then
                'This if statement allows diagonal tiles to be treated differently:
                If X * Y = 0 Then
                    Call GenerateOneNewTile(Row + X, Col + Y, 40)
                Else
                    Call GenerateOneNewTile(Row + X, Col + Y, 40)
                End If
            End If
        Next Y
    Next X
End Sub

Sub GenerateOneNewTile(Row, Col, PercentChanceOfLand)
    Application.StatusBar = "Generate One New Tile (Row, Col, PercentChanceOfLand)"
    Dim ExistingColor As Integer
    Dim RandomNumber As Single
    Dim NewColor As Integer

    If (Row < 5) Or (Col < 4) Then Exit Sub 'because the top and left are reserved, and not part of map.

    ExistingColor = Worksheets("Map").Cells(Row, Col).Interior.ColorIndex

    If ExistingColor = Black Then ANewTileHasBeenExplored = True
    If ExistingColor = LibertyColor Then Call DecrementNumLiberties  'it used to be a liberty.

    If (ExistingColor <> Black) And (ExistingColor <> LibertyColor) Then
        Worksheets("Map").Range(Cells(Row, Col).Address).Copy Worksheets(ActiveSquareIndex).Range(Cells(Row, Col).Address)
        Exit Sub  'done, because its already generated and on master map.
    End If

    RandomNumber = Rnd()

    NumLiberties = Cells(NumLibertiesRow, 2).Value
    If NumLiberties < 2 Then
        NewColor = Grass    'if there is only one possible tile, make sure it is land!
        Call IncrementLandPoints
    Else
        If RandomNumber < (PercentChanceOfLand / 100) Then
            NewColor = Grass
            Call IncrementLandPoints
        Else
            NewColor = Water
            Call IncrementWaterPoints
        End If
    End If

    Cells(Row, Col).Interior.ColorIndex = NewColor

    'Copy the new tile to the Master Map:
    Worksheets("Map").Select
    Cells(Row, Col).Interior.ColorIndex = NewColor
    Worksheets(ActiveSquareIndex).Select
End Sub

Sub IncrementLandPoints()
    Application.StatusBar = "Increment Land Points ()"
    Dim LandPoints As Integer
    LandPoints = Cells(LandPointsRow, 2).Value
    LandPoints = LandPoints + 1
    Cells(LandPointsRow, 2).Value = LandPoints
    Worksheets(ActiveHexIndex).Cells(LandPointsRow, 2).Value = LandPoints
End Sub

Sub IncrementWaterPoints()
    Application.StatusBar = "Increment Water Points ()"
    Dim WaterPoints As Integer
    WaterPoints = Cells(WaterPointsRow, 2).Value
    WaterPoints = WaterPoints + 1
    Cells(WaterPointsRow, 2).Value = WaterPoints
    Worksheets(ActiveHexIndex).Cells(WaterPointsRow, 2).Value = WaterPoints
End Sub

Sub ResumeGame()
    'Determine whose turn it is, activate their hexView sheet, and show joystick.
    Application.StatusBar = "Resume Game ()"
    Dim TurnRow, nthPlayersTurn, TheirSheetIndex As Integer
    TurnRow = Worksheets("Map").Cells(TurnRowStoredAtRow, 2).Value
    nthPlayersTurn = Worksheets("Map").Cells(TurnRow, 2).Value
    TheirSheetIndex = NumReservedSheets + 2 + (nthPlayersTurn - 1) * NumSheetsPerPlayer '2 because the hexView is the second sheet.

    Worksheets(TheirSheetIndex).Activate
    Call ShowJoystick
End Sub

'-------------------------------------------------------------------------------------------------------------------------

'Module 3
'Controller

'Copyright 2016 Matthew J Curran
'
'Licensed under the Apache License, Version 2.0 (the "License");
'you may not use this file except in compliance with the License.
'You may obtain a copy of the License at
'
'    http://www.apache.org/licenses/LICENSE-2.0
'
'Unless required by applicable law or agreed to in writing, software
'distributed under the License is distributed on an "AS IS" BASIS,
'WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
'See the License for the specific language governing permissions and
'limitations under the License.

Option Explicit

Dim ActiveUnitRow, ActiveUnitCol As Integer
Dim NewRow, NewCol As Integer  'new location of the active unit.

Sub MoveThisFarSouthAndThisFarEast(Southwards As Integer, Eastwards As Integer)
    'Moves the active unit to the specified cell (if allowed).
    'It is allowed if that tile is land.
    Application.StatusBar = "Move This Far South And This Far East (Southwards, Eastwards)"
    Application.ScreenUpdating = False
    ANewTileHasBeenExplored = False

    ActiveHexIndex = ActiveSheet.Index
    ActiveSquareIndex = ActiveHexIndex - 1
    Worksheets(ActiveSquareIndex).Select

    'Exit sub if there are no movements remaining:
    If Cells(MovementsRemainingRow, 2).Value < 1 Then
        Worksheets(ActiveHexIndex).Select
        MsgBox ("out of moves")
        Exit Sub
    End If

    ActiveUnitRow = Cells(ActiveUnitRowStoredAtRow, 2).Value
    ActiveUnitCol = Cells(ActiveUnitColStoredAtRow, 2).Value

    NewRow = ActiveUnitRow + Southwards
    NewCol = ActiveUnitCol + Eastwards

    'Check if the new location is legal:
    'Is it land?:
    If Cells(NewRow, NewCol).Interior.ColorIndex <> Grass Then
        MsgBox ("illegal move")
        Worksheets(ActiveHexIndex).Select
        Exit Sub
    End If
    'Is it occupied by another unit?:
    If Cells(NewRow, NewCol).Borders(xlDiagonalUp).LineStyle = xlContinuous Then
        MsgBox ("illegal move")
        Worksheets(ActiveHexIndex).Select
        Exit Sub
    End If

    'Get the color index for this player:
    Dim WhoseTurn, UnitColor As Integer
    WhoseTurn = Sheets("Map").Cells(TurnRowStoredAtRow, 2)
    UnitColor = Sheets("Map").Cells(WhoseTurn, 2)
    Worksheets(ActiveSquareIndex).Select

    'Update the record of the new location:
    Cells(ActiveUnitRowStoredAtRow, 2).Value = NewRow
    Cells(ActiveUnitColStoredAtRow, 2).Value = NewCol

    'Mark the new location:
    With Cells(NewRow, NewCol).Borders(xlDiagonalUp)
        .LineStyle = xlContinuous
        .ColorIndex = UnitColor
        .Weight = xlThick
    End With
    'Unmark the old location:
    Cells(ActiveUnitRow, ActiveUnitCol).Borders(xlDiagonalUp).LineStyle = xlNone

    'Mark the new and unmark the old on the Master Map:
    Worksheets("Map").Select
    With Cells(NewRow, NewCol).Borders(xlDiagonalUp)
        .LineStyle = xlContinuous
        .ColorIndex = UnitColor
        .Weight = xlThick
    End With
    Cells(ActiveUnitRow, ActiveUnitCol).Borders(xlDiagonalUp).LineStyle = xlNone
    Worksheets(ActiveSquareIndex).Select

    'Call an AI function to generate new map tiles:
    Call GenerateNewTiles(NewRow, NewCol)

    'Recount the number of liberties (land adjacent unexplored tiles) if a new tile has been explored:
    'Cells(NumLibertiesRow, 2).Value = 0
    If ANewTileHasBeenExplored Then
        Call CountLiberties(ActiveUnitRow, ActiveUnitCol)
        Worksheets(ActiveSquareIndex).Select
    End If

    'Update the limits of explored map:
    Dim LRRow, LRCol As Integer  'Lower Right.
    LRRow = NewRow + 1
    LRCol = NewCol + 1
    Dim LastMapRow, LastMapCol, LastMasterMapRow, LastMasterMapCol As Integer
    LastMapRow = Cells(LastMapRowStoredAtRow, 2).Value
    LastMapCol = Cells(LastMapColStoredAtRow, 2).Value
    If LRRow > LastMapRow Then Cells(LastMapRowStoredAtRow, 2).Value = LRRow
    If LRCol > LastMapCol Then Cells(LastMapColStoredAtRow, 2).Value = LRCol
    With Worksheets("Map")
        LastMasterMapRow = .Cells(LastMapRowStoredAtRow, 2).Value
        LastMasterMapCol = .Cells(LastMapColStoredAtRow, 2).Value
        If LRRow > LastMasterMapRow Then .Cells(LastMapRowStoredAtRow, 2).Value = LRRow
        If LRCol > LastMasterMapCol Then .Cells(LastMapColStoredAtRow, 2).Value = LRCol
    End With

    'Copy to hex map:
    Call UpdateHexView(NewRow, NewCol)

    Call DecrementMovementsRemaining

    'Reactivate the hex sheet:
    Worksheets(ActiveHexIndex).Select

    Application.ScreenUpdating = True
End Sub


Sub MoveNorth()
    Call MoveThisFarSouthAndThisFarEast(-1, 0)
End Sub

Sub MoveSouth()
    Call MoveThisFarSouthAndThisFarEast(1, 0)
End Sub

Sub MoveWest()
    Call MoveThisFarSouthAndThisFarEast(0, -1)
End Sub

Sub MoveEast()
    Call MoveThisFarSouthAndThisFarEast(0, 1)
End Sub

Sub MoveNE()
    Call MoveThisFarSouthAndThisFarEast(-1, 1)
End Sub

Sub MoveSW()
    Call MoveThisFarSouthAndThisFarEast(1, -1)
End Sub

Sub ShowJoystick()
    Application.StatusBar = "Show Joystick ()"
    Joystick.Show
End Sub

Sub ShowStartButton()
    StartGameForm.Show
End Sub

'-------------------------------------------------------------------------------------------------------------------------

'Module 4
'Model/View
'Lighthouse Search (AI to count the number of potential new land tiles)
'The lighthouse moves clockwise around coast, staying on land.
'(moves clockwise => it always tries to turn left, relative to its direction of movement).

'Copyright 2016 Matthew J Curran
'
'Licensed under the Apache License, Version 2.0 (the "License");
'you may not use this file except in compliance with the License.
'You may obtain a copy of the License at
'
'    http://www.apache.org/licenses/LICENSE-2.0
'
'Unless required by applicable law or agreed to in writing, software
'distributed under the License is distributed on an "AS IS" BASIS,
'WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
'See the License for the specific language governing permissions and
'limitations under the License.

Dim Direction As String

Dim LighthouseHasMoved As Boolean

Dim LighthouseRow, LighthouseCol As Integer
Dim PreviousLHRow, PreviousLHCol As Integer  'previous location of the lighthouse.


Sub CheckForLibertyAt(Row, Col)
    '(and add it to sum if it is a potential new land tile).
    If Cells(Row, Col).Interior.ColorIndex = LibertyColor Then Exit Sub 'already counted.
    If Cells(Row, Col).Interior.ColorIndex = Black Then
        Call IncrementNumLiberties
        Cells(Row, Col).Interior.ColorIndex = LibertyColor  'mark the tile as counted.
    End If
End Sub

Sub CheckForLibertyAdjacentTo(Row, Col)
    'Application.StatusBar = "Check For Liberty Adjacent To (Row, Col)"
    'examine the four squarely adjacent tiles:
    Call CheckForLibertyAt(Row - 1, Col)
    Call CheckForLibertyAt(Row + 1, Col)
    Call CheckForLibertyAt(Row, Col - 1)
    Call CheckForLibertyAt(Row, Col + 1)
    'examine the 2 hexagonally adjacent tiles (SW and NE):
    Call CheckForLibertyAt(Row + 1, Col - 1) 'SW
    Call CheckForLibertyAt(Row - 1, Col + 1) 'NE
End Sub


'Six nearly identical subs for six directions:
Sub TryEast()
    If LighthouseHasMoved Then Exit Sub
    If Cells(LighthouseRow, LighthouseCol + 1).Interior.ColorIndex = Grass Then
        'since the tile to the east is known to be land, move the lighthouse there:
        Direction = "east"
        PreviousLHRow = LighthouseRow
        PreviousLHCol = LighthouseCol
        LighthouseCol = LighthouseCol + 1
        LighthouseHasMoved = True
        If DebuggingIsOn Then
            Cells(DebugRow, 1).Value = Direction
            DebugRow = DebugRow + 1
        End If

        Call CheckForLibertyAdjacentTo(LighthouseRow, LighthouseCol)
    End If
End Sub

Sub TrySE()
    If LighthouseHasMoved Then Exit Sub
    If Cells(LighthouseRow + 1, LighthouseCol).Interior.ColorIndex = Grass Then
        Direction = "SE"
        PreviousLHRow = LighthouseRow
        PreviousLHCol = LighthouseCol
        LighthouseRow = LighthouseRow + 1
        LighthouseHasMoved = True
        If DebuggingIsOn Then
            Cells(DebugRow, 1).Value = Direction
            DebugRow = DebugRow + 1
        End If
        Call CheckForLibertyAdjacentTo(LighthouseRow, LighthouseCol)
    End If
End Sub

Sub TrySW()
    If LighthouseHasMoved Then Exit Sub
    If Cells(LighthouseRow + 1, LighthouseCol - 1).Interior.ColorIndex = Grass Then
        Direction = "SW"
        PreviousLHRow = LighthouseRow
        PreviousLHCol = LighthouseCol
        LighthouseRow = LighthouseRow + 1
        LighthouseCol = LighthouseCol - 1
        LighthouseHasMoved = True
        If DebuggingIsOn Then
            Cells(DebugRow, 1).Value = Direction
            DebugRow = DebugRow + 1
        End If
        Call CheckForLibertyAdjacentTo(LighthouseRow, LighthouseCol)
    End If
End Sub

Sub TryWest()
    If LighthouseHasMoved Then Exit Sub
    If Cells(LighthouseRow, LighthouseCol - 1).Interior.ColorIndex = Grass Then
        Direction = "west"
        PreviousLHRow = LighthouseRow
        PreviousLHCol = LighthouseCol
        LighthouseCol = LighthouseCol - 1
        LighthouseHasMoved = True
        If DebuggingIsOn Then
            Cells(DebugRow, 1).Value = Direction
            DebugRow = DebugRow + 1
        End If
        Call CheckForLibertyAdjacentTo(LighthouseRow, LighthouseCol)
    End If
End Sub

Sub TryNW()
    If LighthouseHasMoved Then Exit Sub
    If Cells(LighthouseRow - 1, LighthouseCol).Interior.ColorIndex = Grass Then
        Direction = "NW"
        PreviousLHRow = LighthouseRow
        PreviousLHCol = LighthouseCol
        LighthouseRow = LighthouseRow - 1
        LighthouseHasMoved = True
        If DebuggingIsOn Then
            Cells(DebugRow, 1).Value = Direction
            DebugRow = DebugRow + 1
        End If
        Call CheckForLibertyAdjacentTo(LighthouseRow, LighthouseCol)
    End If
End Sub

Sub TryNE()
    If LighthouseHasMoved Then Exit Sub
    If Cells(LighthouseRow - 1, LighthouseCol + 1).Interior.ColorIndex = Grass Then
        Direction = "NE"
        PreviousLHRow = LighthouseRow
        PreviousLHCol = LighthouseCol
        LighthouseRow = LighthouseRow - 1
        LighthouseCol = LighthouseCol + 1
        LighthouseHasMoved = True
        If DebuggingIsOn Then
            Cells(DebugRow, 1).Value = Direction
            DebugRow = DebugRow + 1
        End If
        Call CheckForLibertyAdjacentTo(LighthouseRow, LighthouseCol)
    End If
End Sub


Sub CountLibertiesInDirection(ByVal Row As Integer, ByVal Col As Integer)
    'start lighthouse at (row,col), and stop once it returns to that tile.  Moves clockwise.
    ActiveSquareIndex = ActiveSheet.Index
    Worksheets("Map").Select

    LighthouseRow = Row
    LighthouseCol = Col

    Do
        LighthouseHasMoved = False
        Select Case Direction
            Case "east"
                Call TryNW
                Call TryNE
                Call TryEast       'Only one of these functions will be executed, because each contains an Exit Sub
                Call TrySE         'to be executed in case LighthouseHasMoved.
                Call TrySW
                Call TryWest
            Case "SE"
                Call TryNE
                Call TryEast
                Call TrySE
                Call TrySW
                Call TryWest
                Call TryNW
            Case "SW"
                Call TryEast
                Call TrySE
                Call TrySW
                Call TryWest
                Call TryNW
                Call TryNE
            Case "west"
                Call TrySE
                Call TrySW
                Call TryWest
                Call TryNW
                Call TryNE
                Call TryEast
            Case "NW"
                Call TrySW
                Call TryWest
                Call TryNW
                Call TryNE
                Call TryEast
                Call TrySE
            Case "NE"
                Call TryWest
                Call TryNW
                Call TryNE
                Call TryEast
                Call TrySE
                Call TrySW
            Case Else
                MsgBox ("direction error: " & Direction)
        End Select
    Loop While ((LighthouseRow <> Row) Or (LighthouseCol <> Col))
    Worksheets(ActiveSquareIndex).Select
End Sub

Sub CountLiberties(ByVal Row As Integer, ByVal Col As Integer)
    Application.StatusBar = "Count Liberties (Row, Col)"
    Call ResetAllLibertiesToBlack

    'call the helper six times (just in case each direction is an independent peninsula):

    Direction = "east"
    Call CountLibertiesInDirection(Row, Col)
    Direction = "SE"
    Call CountLibertiesInDirection(Row, Col)
    Direction = "SW"
    Call CountLibertiesInDirection(Row, Col)

    Direction = "west"
    Call CountLibertiesInDirection(Row, Col)
    Direction = "NW"
    Call CountLibertiesInDirection(Row, Col)
    Direction = "NE"
    Call CountLibertiesInDirection(Row, Col)
End Sub

Sub ResetAllLibertiesToBlack()
    Worksheets(ActiveSquareIndex).Cells(NumLibertiesRow, 2).Value = 0
    Worksheets(ActiveHexIndex).Cells(NumLibertiesRow, 2).Value = 0
    Dim Row, Col, LastRow, LastCol As Integer
    LastRow = Worksheets("Map").Cells(LastMapRowStoredAtRow, 2).Value
    LastCol = Worksheets("Map").Cells(LastMapColStoredAtRow, 2).Value

    For Row = FirstMapRow To LastRow
        For Col = FirstMapCol To LastCol
            If Worksheets("Map").Cells(Row, Col).Interior.ColorIndex = LibertyColor Then
                Worksheets("Map").Cells(Row, Col).Interior.ColorIndex = Black
            End If
        Next Col
    Next Row
End Sub

'-------------------------------------------------------------------------------------------------------------------------
'---  Code for Buttons:
'-------------------------------------------------------------------------------------------------------------------------

This form must be named "joystick".  The buttons must be named to match the code below.

'Joystick Buttons:

Private Sub CommandButtonEast_Click()
    Application.ScreenUpdating = False
    ActiveHexIndex = ActiveSheet.Index  'this works because user only sees the hex view.
    Call MoveEast
    Application.ScreenUpdating = True
End Sub

Private Sub CommandButtonNE_Click()
    Application.ScreenUpdating = False
    ActiveHexIndex = ActiveSheet.Index
    Call MoveNE
    Application.ScreenUpdating = True
End Sub

Private Sub CommandButtonNorth_Click()
    Application.ScreenUpdating = False
    ActiveHexIndex = ActiveSheet.Index
    Call MoveNorth
    Application.ScreenUpdating = True
End Sub

Private Sub CommandButtonSouth_Click()
    Application.ScreenUpdating = False
    ActiveHexIndex = ActiveSheet.Index
    Call MoveSouth
    Application.ScreenUpdating = True
End Sub

Private Sub CommandButtonSW_Click()
    Application.ScreenUpdating = False
    ActiveHexIndex = ActiveSheet.Index
    Call MoveSW
    Application.ScreenUpdating = True
End Sub

Private Sub CommandButtonWest_Click()
    Application.ScreenUpdating = False
    ActiveHexIndex = ActiveSheet.Index
    Call MoveWest
    Application.ScreenUpdating = True
End Sub

Private Sub EndTurnButton_Click()
    Call EndTurn
End Sub

'-------------------------------------------------------------------------------------------------------------------------
This form must be named "StartGameForm".  The button must be named as below.

'StartGameButton:

Private Sub StartGameButton_Click()
    Call GenerateMapsForAllPlayers

    Worksheets(NumReservedSheets + 2).Activate

    StartGameForm.Hide
    Call ShowJoystick
End Sub
